$5,999.00

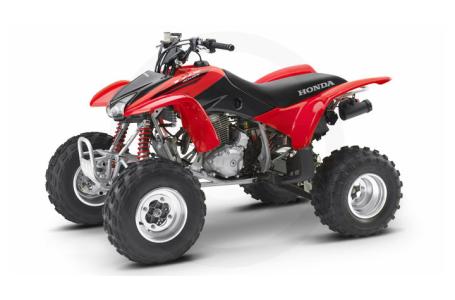

2007 Honda TRX400EX
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Red
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Tough. Reliable. Packed with performance. And just plain fun to ride. That's the TRX400EX in a nutshell. No surprise considering this TRX was conceived using one of Honda's best XR™ engines ever, and from there specially tuning it for ATV duty, adding a reverse gear, electric start, long-travel suspension, and sleek, race-inspired bodywork. Looking for the best all-around sport ATV out there? Here you go.

    ENGINE
    • Engine Type: 397cc RFVC air-cooled dry-sump single-cylinder four-stroke
    • Bore and Stroke: 85.0mm x 70.0mm
    • Carburetion: 38.0mm piston-valve with accelerator pump
    • Ignition: CD with electronic advance
    • Starter: Electric
    DRIVE TRAIN
    • Transmission: Five-speed
    • Driveline: O-ring-sealed chain
    • Clutch: Manual
    CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Independent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping; 8.2-inch travel
    • Rear Suspension: Pro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping; 9.1-inch travel
    • Front Brakes: Dual hydraulic 174.0 mm discs
    • Rear Brake: Single hydraulic 222.0 mm disc
    • Front Tires: 22 x 7-10 knobby radial
    • Rear Tires: 20 x 10-9 knobby radial
    DIMENSIONS
    • Length: 72.2 inches (1,834mm)
    • Width: 45.3 inches (1,151mm)
    • Height: 43.7 inches (1,109mm)
    • Wheelbase: 48.4 inches (1,229mm)
    • Seat Height: 31.9 inches (810mm)
    • Ground Clearance: 4.3 inches (109mm)
    • Dry Weight: 386.0 pounds (175kg)
    • Fuel Capacity: 2.6 gallons, including 0.4-gallon reserve (9.8 l, including 1.5 l reserve)
    • Turning Radius: 10.5 ft
    OTHER
    • Options: Consult your owner's manual for optional HRC Racing kit parts
    • Available Colors: Red, Black
    • Model ID: TRX400EX
    FACTORY WARRANTY INFORMATION
    • 6 months: Transferable, limited warranty; extended coverage available with a Honda Protection Plan

    Specifications

    Engine
    Engine Type four-stroke
    Displacement 397cc
    Bore x Stroke 85.0 x 70.0 mm
    Cylinders single-cylinder
    Engine Cooling air-cooled dry-sump
    Fuel System 38.0mm piston-valve with accelerator pump
    Starting System CD with electronic advance, Electric
    Chassis
    Front Suspension Independent double-wishbone with Showa shocks, five-position spring-preload adjustability; 8.2-inch (208mm) travel
    Front Travel 8.2 in.
    Front Brake Type Dual hydraulic 174.0mm discs
    Front Tires 22 x 7-10 knobby radial
    Rear Travel 9.1 in.
    Rear Suspension Pro-Link fully adjustable single Showa shock; 9.1-inch (231mm) travel
    Rear Brake Type Single 220.0mm disc
    Rear Tires 20 x 10-9 knobby radial
    Dimensions/Capacities
    Dry Weight 386 lbs. (175 kg.)
    Fuel Capacity 2.6 gal., including 0.4-gal. reserve (9.8 l, including 1.5 l reserve)
    Ground Clearance 4.3 in. (109mm)
    Machine Dimensions (LxWxH) 72.2" (1,834mm) x 45.3" (1,1151mm) x 43.7" (1109mm)
    Wheelbase 48.4 in. (1,229mm)
    Drive Train
    Drive Train O-ring-sealed chain
    Transmission Five-speed with reverse
    General
    Colors Black, Red
    Warranty 6 months: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

    Compare Models

    		 Print








    Year 2007
    Manufacturer Honda
    Model TRX400EX
    Style Sport
    MSRP* $5,999.00
    Chassis
    Front Suspension Independent double-wishbone with Showa shocks, five-position spring-preload adjustability; 8.2-inch (208mm) travel
    Front Travel 8.2 in.
    Front Brake Type Dual hydraulic 174.0mm discs
    Front Tires 22 x 7-10 knobby radial
    Rear Suspension Pro-Link fully adjustable single Showa shock; 9.1-inch (231mm) travel
    Rear Travel 9.1 in.
    Rear Brake Type Single 220.0mm disc
    Rear Tires 20 x 10-9 knobby radial
    Frame
    Dimensions/Capacities
    Dry Weight 386 lbs. (175 kg.)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.6 gal., including 0.4-gal. reserve (9.8 l, including 1.5 l reserve)
    Ground Clearance 4.3 in. (109mm)
    Machine Dimensions (LxWxH) 72.2" (1,834mm) x 45.3" (1,1151mm) x 43.7" (1109mm)
    Wheelbase 48.4 in. (1,229mm)
    Drive Train
    Drive Train O-ring-sealed chain
    Final Drive
    Transmission Five-speed with reverse
    Engine
    Engine Type four-stroke
    Displacement 397cc
    Bore x Stroke 85.0 x 70.0 mm
    Cylinders single-cylinder
    Engine Cooling air-cooled dry-sump
    Fuel System 38.0mm piston-valve with accelerator pump
    Starting System CD with electronic advance, Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Black, Red
    Warranty 6 months: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
